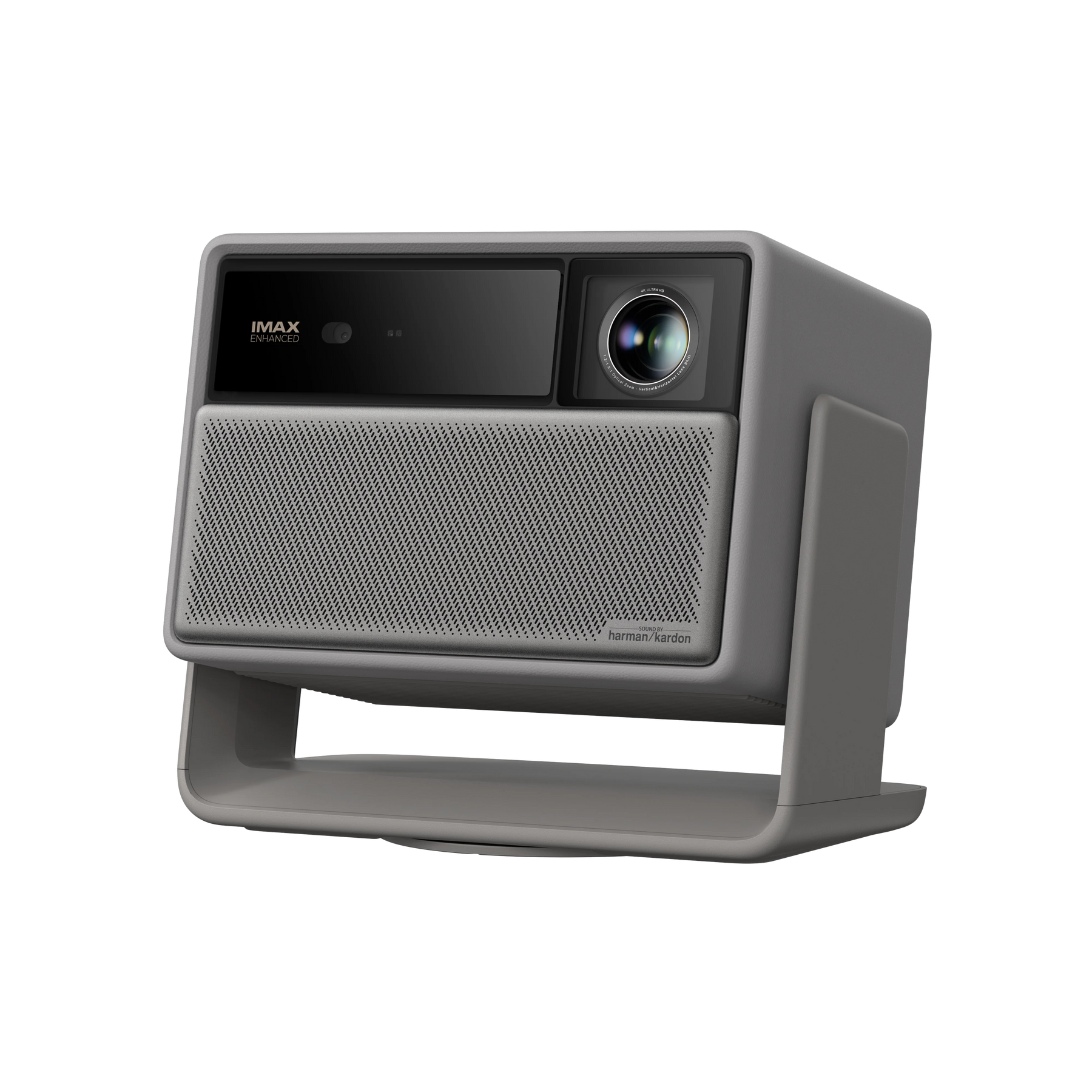

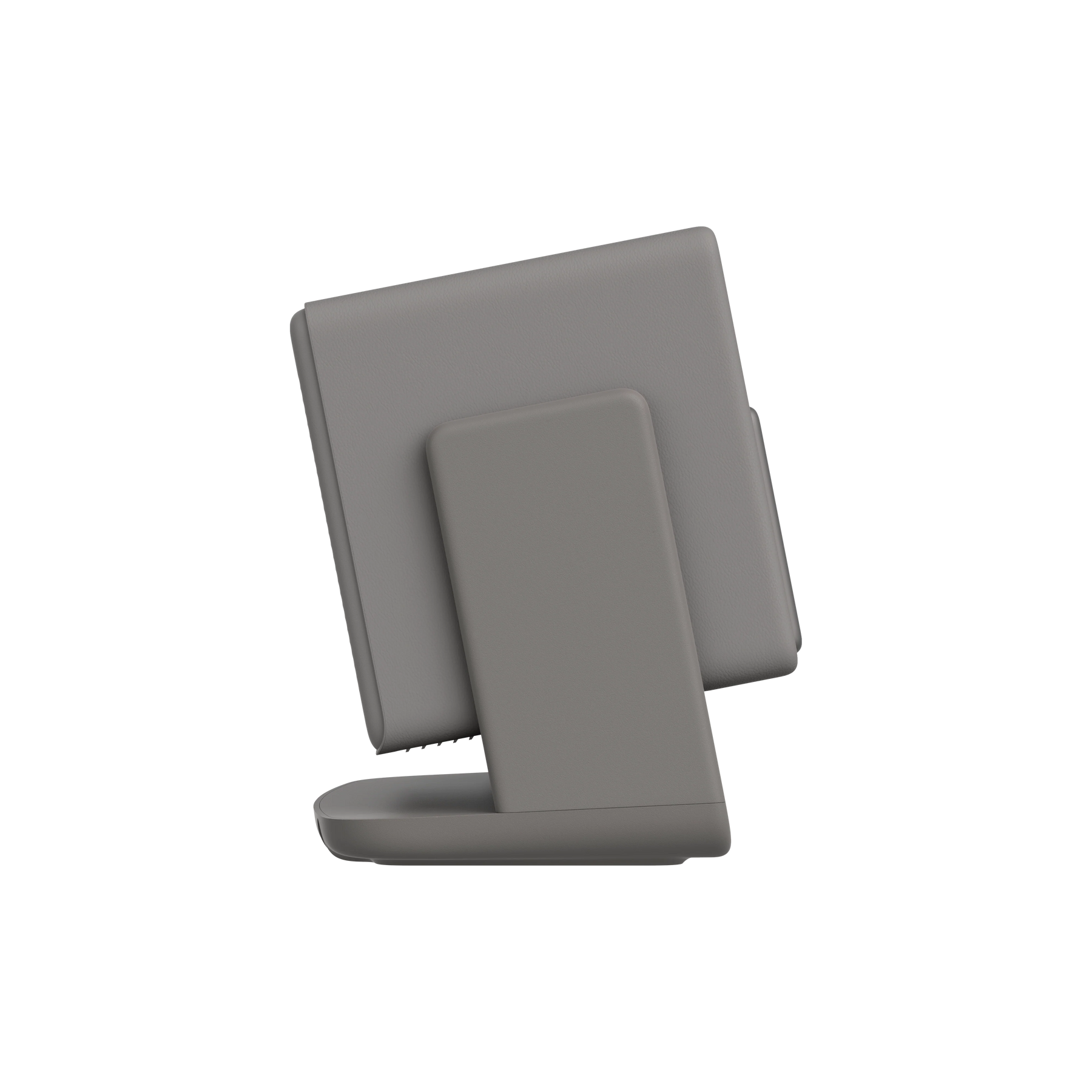

XGIMI HORIZON 20 Projector 4K UHD

XGIMI SKU:
XGIMI HORIZON 20 Projector 4K UHD
XGIMI HORIZON 20 Projector 4K UHD
XGIMI HORIZON 20 Projector 4K UHD
XGIMI HORIZON 20 Projector 4K UHD

XGIMI HORIZON 20 Projector 4K UHD

XGIMI SKU:
Regular price $3,999.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Reliable warranty
  • Free shipping
  • 100% secure shopping
  • Powered by RGB Triple Laser: The X-Master RGB triple laser engine delivers 3200 ISO lumens and a 20,000:1 contrast ratio for vivid, accurate colors and exceptional image depth—perfect for immersive viewing anytime.
  • Cinematic Certified: IMAX Enhanced, Dolby Vision, HDR10+, and Filmmaker Mode combine to deliver stunning visuals and true-to-intent playback—bringing the theater home.
  • Standard Resolution: 3840 x 2160 pixels
  • All-in-One Simplicity: From powerful Harman Kardon speakers to built-in Google TV and an integrated stand, everything you need is already inside—no extra setup, no compromises.
  • Lossless Optics: Flexible lens shift and optical zoom give you more freedom in setup—without sacrificing clarity. Enjoy crisp, distortion-free visuals at any size, from any angle.
  • Pro-Level Gaming Features: Play big with 300" visuals, 1ms response, 240Hz fluidity—plus VRR and ALLM for seamless sync and ultra-low latency.
  • Product Size (H x W x D): 249 × 298 × 190 mm / Package Size (H x W x D): 424 × 369 × 251 mm
  • Product Weight: 4.8 kg / Package Weight: 6.5 kg
  • 2-Year Warranty: Double the coverage for greater peace of mind. Outstanding performance, now with support to match.
  • Advanced Support: If you encounter any issues during use, feel free to contact us via the dedicated support email coodooau@gmail.com. We will provide you with prompt and professional assistance.
Specification Details
Product Classification Home Projector
Display Technique DLP
3D Yes
Latency (Game Mode, VRR on, AK off) 1ms at 1080P@240Hz
2.2ms at 1080P@120Hz
3ms at 4K@60Hz
Brightness 3200 ISO Lumens
Compatible Resolution /
Contrast Ratio 20,000:1 (DBLE On)
Eye Protection Yes
Light Source RGB Triple Laser
Display Chip 0.47” DMD
Supported Formats HDR 10+, IMAX Enhanced, Dolby Vision
MEMC Yes
Standard Resolution 3840 x 2160 pixels
Color Gamut BT.2020 110%
Lens High Light Transmission Coated Lens
Auto Keystone Correction Uninterrupted Auto Keystone
Intelligent Screen Alignment Yes
Lens Shift V±120% / H±45%
Digital Zoom Yes
Aspect Ratio 16:9
Image Size 40" - 300"
Focus Auto Focus
Intelligent Obstacle Avoidance Yes
Optical Zoom Yes
Throw Ratio 1.2 - 1.5:1
Projection Method Front, Rear, Front Ceiling, Rear Ceiling
CPU MT9679
GPU Mali-G52
RAM 4GB
Storage 128GB
System Google TV
Fast Boot Yes (STR)
Mirroring Display DLNA / GoogleCast
Audio
Speaker 2 × 12W Harman/Kardon
DTS-Virtual:X Yes
DTS-HD Yes
Dolby Audio Yes
Dolby Digital (DD) Yes
Dolby Digital Plus (DD+) Yes
Connectivity
Wi-Fi Wi-Fi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2
Input Ports DC × 1
HDMI × 2 (HDMI1 supports eARC)
USB 3.0 × 1, USB 2.0 × 1
Output Ports Optical × 1, Audio × 1
Electrical
Noise Level ≤28dB @ 1m
Power Dissipation ≤180W
Power AC100-240V, 50/60Hz

All orders are processed and dispatched within 1 to 3 business days (excluding weekends and public holidays) after receiving your order confirmation. You will receive another email notification once your order has been shipped.

Complimentary standard shipping on orders over $100.

How do I check the status of my order?

  • When your order has shipped, you will receive an email notification from us which will include a tracking number you can use to check its status. Please allow 48 hours for the tracking information to become available.
  • If you haven’t received your order within 10 days of receiving your shipping confirmation email, please contact us at coodooau@gmail.com with your name and order number, and we will look into it for you.

 If you have any further questions, please don't hesitate to contact us at coodooau@gmail.com



1. Brightness (light output) will vary depending on usage conditions. White light output is measured according to ISO 21118. The nominal value represents the average value of mass-produced units and is tested under ideal laboratory conditions in Performance Mode/High Power Mode. In Performance Mode, the highest brightness is achieved, which may result in some color differences compared to the default viewing mode. Additionally, the fan speed may increase, potentially causing noise. This is normal. For regular viewing, it is recommended to use other brightness modes.

2. Based on the data from XGIMI Laboratory tests, this product's color gamut area ratio is 110% under the BT.2020 standard.

3. The Eye Protection function can be enabled or disabled in the system settings.

4. To ensure accurate calibration, the side throw angle should not exceed 40° (degrees). The display quality may vary based on product usage habits and environmental conditions. When using Uninterrupted Auto Keystone Correction, you need to disable the "Intelligent Screen Alignment" and "Intelligent Obstacle Avoidance" functions in the system settings; due to the complexity of the environment, Uninterrupted Auto Keystone Correction may fail, and manual correction may be required.

5. For the projection image to automatically fill the entire screen, it must cover the entire border of the screen. To ensure a comfortable aspect ratio, non-16:9 screens may not be fully covered. It is recommended to use a screen with a black border around the edges to improve recognition accuracy.

6. Due to environmental complexities, Intelligent Obstacle Avoidance does not guarantee the avoidance of all obstacles.

7. The vertical lens shift range is ±120%. The default lens position is set at 100%, allowing for an additional 20% upward shift and the full 120% downward shift. Lens shift function is mutually exclusive with keystone. When lens shift is activated, all intelligent image adjustment features—including Auto Keystone, Auto Focus, Wall Color Adaptation, and Eye Protection—will be disabled.

8. For the best viewing experience, we recommend using a projection size of 60-150 inches. Exceeding this range may affect the quality of your projected content. The display quality may vary based on product usage habits and environmental conditions.

9. The actual storage capacity is subject to change based on various factors, such as system usage, software version, and settings used.

10. Wi-Fi 6 indicates the version of the wireless network protocol supported by the device, and it can be used with wireless routers and other equipment that support the corresponding protocol version. Network speed is influenced by various factors; please refer to actual conditions for precise performance.

11. The USB 3.0 port supports the USB 3.0 protocol. Actual data transfer speed may vary due to multiple factors. Please refer to the actual performance.

12. Measured under an ambient temperature of 25°C with a 1-meter distance from the machine. Results may vary based on different testing environments, conditions, and the product being evaluated. This data comes from XGIMI laboratories.

13. The actual size may vary based on configuration, manufacturing, and testing method.

14. The actual weight may vary based on configuration, manufacturing process, and testing method.

15. SGS Professional Color Accuracy Certification Number: PT/25/GEN/0201. The typical value of ΔE<0.8 for color accuracy in the factory production of XGIMI HORIZON 20 Series is obtained from the XGIMI Optical Laboratory. The calibration parameters will take effect when the high color accuracy mode is correctly activated in the system. Color accuracy may vary slightly depending on factors such as projection usage time and lab testing equipment. Please refer to your actual experience for an accurate assessment.

16. Low Speckle A+ Certification Number: PT/25/GEN/0197; Low Color Fringing Ratio A+ Certification Number: PT/25/GEN/0198.

17. The Wall Color Adaption feature needs to be enabled in the system settings to take effect. Once activated, it can calibrate the picture based on wall colors with a color temperature ranging from 3000K to 15000K. However, the calibration effect may vary depending on the wall color. For optimal results, we recommend using it in dimly lit environments.


* Actual product features and specifications (including appearance, color, and size) and actual display aspects (including backgrounds, interface, and icons) may vary by country. Please consult the point of sale for further information.
* All performance data in the preceding pages are theoretical values obtained by XGIMI internal laboratories through tests conducted under particular conditions. Refer to the aforementioned product details for more information on the specific testing conditions. Actual performance may vary based on individual product configurations, software versions, application conditions, and environmental factors. All data is subject to actual usage.
* XGIMI makes every effort at the time of publication to ensure the accuracy of the product information it provides. Due to subsequent changes involving product batches, production, and supply factors, it may be necessary for XGIMI to make changes and adjustments to text and images so that they match the performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
* Operating temperature: 32°F to 104°F
* All parameters listed on this page are measured in an XGIMI internal test environment for mass production. User experiences may vary in different settings, usage conditions, software versions, etc. Please check the official XGIMI website for detailed test standards and data.
* The product includes a printed manual. However, the electronic manual will be updated on the XGIMI website. If there is any discrepancy or conflict between the printed and the electronic manual, please refer to the latest electronic manual on the official website.
* We advocate for environmental sustainability and paper conservation. For instructions in various languages, please scan the QR code of the printed manual or download the electronic version. If you have any questions during use, please contact us via coodooau@gmail.com

4K Ultra HD | Google TV

Horizon 20

The All-in-One ACE for Everyday Greatness

Ultra-High Contrast

From 1,000:1 industry standard, to 20,000:1 viewing and 1,000,000:1 dynamic contrast, for deeper lifelike details.

HORIZON 20

20,000:1
Veiwing Contrast
1,000,000:1
Dynamic Contrast

The X-Master RGB Triple Laser Engine

Powering next-level visuals, the XGIMI X-Master RGB Triple Laser Engine delivers powerful brightness to handle daytime viewing with ease, while expanded wavelength coverage minimizes speckle and chromatic fringing for sharper, purer images.

Speckle Reduction Hardware

Image Tuning Algorithm

State-of-the-Art Image Calibration

ΔE<0.8

XGIMI achieves ultra high color accuracy under all four major color gamut standards, delivering industry-leading color precision and consistent color rendering.

Advanced Control

We give users the freedom to fine-tune multiple image quality and color parameters within the projector menu, creating a truly personalized visual experience.

Dynamic Tone Mapping

Seamlessly adapts brightness and contrast in real time to retain highlight brilliance, deepen shadow detail, and ensure cinematic HDR clarity in every scene.

Colours Calibrated to the Human Eye

Color perception can differ from one viewer to the next. XGIMI's RGB Triple Laser technology calibrates color delivery based on the human visual response curve, providing exceptional color purity and a more precise viewing experience.

The Science of Beautiful Color

We're obsessed with color accuracy. By introducing the groundbreaking concept of a three-dimensional color gamut — incorporating the element of brightness into color performance assessment — XGIMI's 3D Color Gamut Evaluation process offers a more scientific and rigorous approach to assessing color accuracy.

118% BT.2020

Color Volume Ratio*

98% BT.2020

3D Color Gamut Coverage*

Dominate Your Game on 200 Inches

Experience epic gameplay on a vivid 200" screen with 1ms input lag and 240Hz smoothness at 1080P. Connect instantly to PS5, Xbox, Switch, or cloud platforms for smooth, immersive gaming—anytime, anyway with zero compromise.

Recreate the Energy of IMAX

Bring the one-of-a-kind IMAX entertainment experience home with IMAX Enhanced. Immerse yourself in 4K brilliance on a 26% larger screen.

See Every Detail, Powered by Dolby Vision

Enjoy automatic frame-by-frame image optimization with Dolby Vision, designed to bring out every nuance of color, contrast, and brightness.

Stay True to the Director’s Vision

Experience entertainment exactly as the director intended. Filmmaker Mode adjusts viewing settings to the original frame rate, aspect ratio, colors, and brightness specifications.

Tailored Content, Broad Compatibility

Enjoy an optimized viewing experience on the widest selection of movies and shows with HDR10+, the image enhancement technology that dynamically adjusts brightness and color levels for each scene.

All Entertainment, All in One Place

Built-in Google TV gives you instant access to Netflix, YouTube, Prime Video, and more — no extra devices needed. Connect with Google Home for easy voice control and a hands-free viewing experience.

Lossless Big-Screen Viewing in Any Room

Enjoy instant 3D magic with compatible 3D glasses (not included, sold separately), and experience sharper detail with advanced AI upscaling.

Freedom to Connect

With a full suite of connectivity ports, including HDMI and USB, you can easily connect and project everything from gaming consoles to streaming devices.

HDMI × 2

(HDMI1 supports eARC)

USB 3.0 × 1

USB 2.0 × 1

Sound Your Feel

Premium Harman Kardon speakers are built in to deliver rich, room-filling sound—no external setup needed.

24W – High Power Output

360° – Surround Sound

55Hz – Deep Bass Extension

630cc – Acoustic Chamber Volume
